Optics Components
Optical components are the interface between the application
process and the detection system: The optics should transfer
as much light intensity as possible and it should be flexible and
resistant to industrial environments.
Our Optics Components:

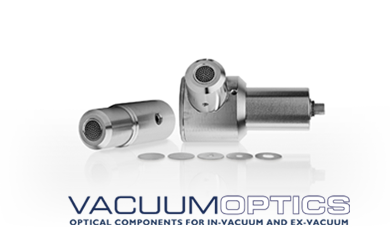

Collimator optics for in-vacuum use
We are offering a great variety of optics components for
ex-vacuum and in-vacuum use to meet the requirements of the
diverse applications. All optics parts are made of quartz to ensure
light transmission in the spectral range from 200 - 1100 nm. The
sensor heads of the in-vacuum collimator optics are equipped
contamination or coating of the quartz optics. We are offering
standard size and minature size optics made of stainless steel or
aluminum.
craftsmanship and are subject to strongest quality
control.
Optics Components Key Notes:
- collimator optics with 0° or 90° line of sight
- coating protection and set of irises
- sensor head with Ø 22 mm
- quartz optics: 200 - 1100 nm
- SMA connector
- stainless steel or aluminum
•Collimator optics and optical fibers
•Collimator optics with coating protection
•Optical vacuum feedthroughs
•Standard and miniature size opticts
In-vacuum optics in standard and minature size
- sensor heads with Ø 22 and Ø 2 mm
- 0° or 90° line of sight
- coating protection and set of irises
- quartz optics: 200 - 1100 nm
- in-vacuum quartz fibers
- stainless steel or aluminum
Collimator optics for ex-vacuum use
- collimator optics with 0° line of sight
- sensor head with Ø 22 mm
- quartz optics: 200 - 1100 nm
- quartz fibers
- SMA connector
- housing material: POM
Vacuum optics with optical vacuum feedthrough
- collimator optics with 0° or 90° line of sight
- coating protection and set of irises
- sensor head with Ø 22 mm
- quartz optics: 200 - 1100 nm
- in-vacuum quartz fibers
- optical vacuum feedthrough in
KF/CF-flange
- SMA connectors
- stainless steel or aluminum
Vacuum optics mounted to optical vacuum feedthrough
- coating protection and set of irises
- sensor head with Ø 22 mm
- quartz optics: 200 - 1100 nm
- rigid in-vacuum quartz fiber connector
- optical vacuum feedthrough in
KF/CF-flange
- SMA connectors
- stainless steel or aluminum
Optical vacuum feedthroughs
- optical vacuum feedthroughs in
KF/CF-flange
- up to 4 optical feedthroughs in single
flange
- SMA connectors
- stainless steel or aluminum
Quartz fibers
- in-vacuum quartz fibers
- electricallly isolated quratz fibers
- all fibers with stainless steel jacketing
- quartz optics: 200 - 1100 nm
- SMA connectors
